| Model | Max Output Torque (Nm) | Max Working Pressure (Mpa) | Max Output Speed (r/min) | Applicable Tonnage (T) |
|---|---|---|---|---|
| R210 | 42000 | 34.5 | 46 | 25-30T |

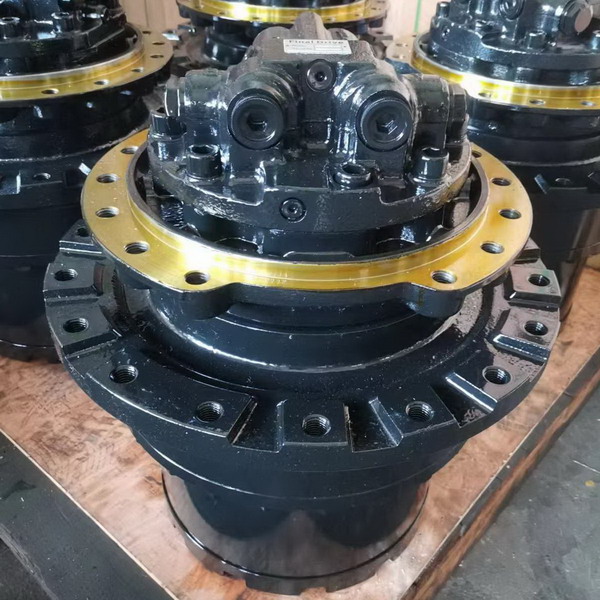

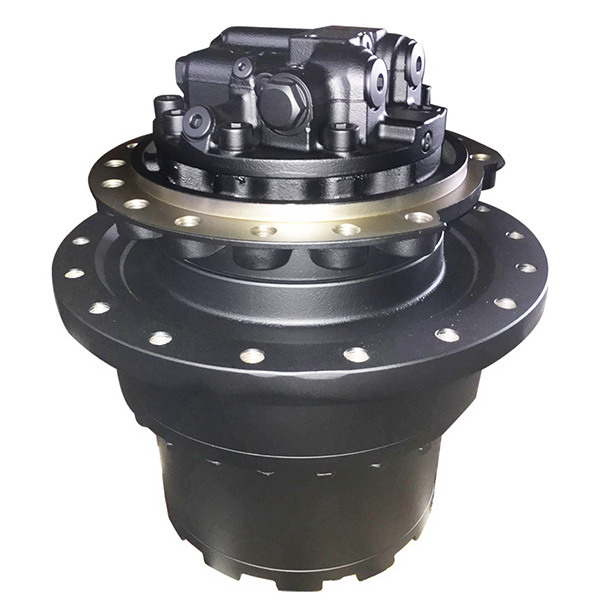

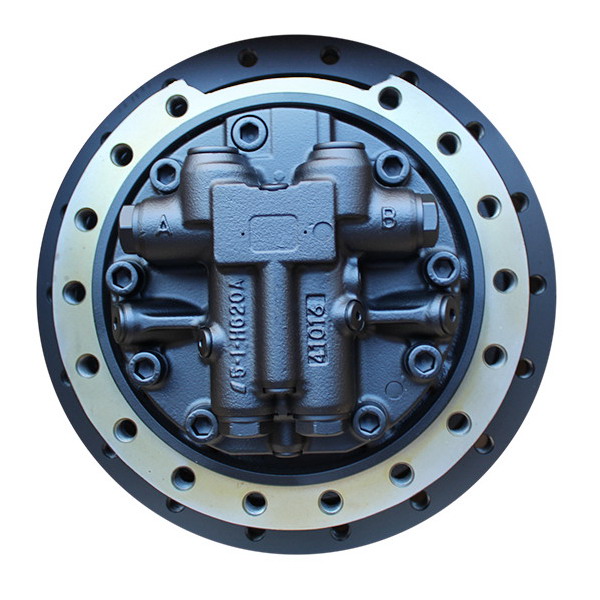

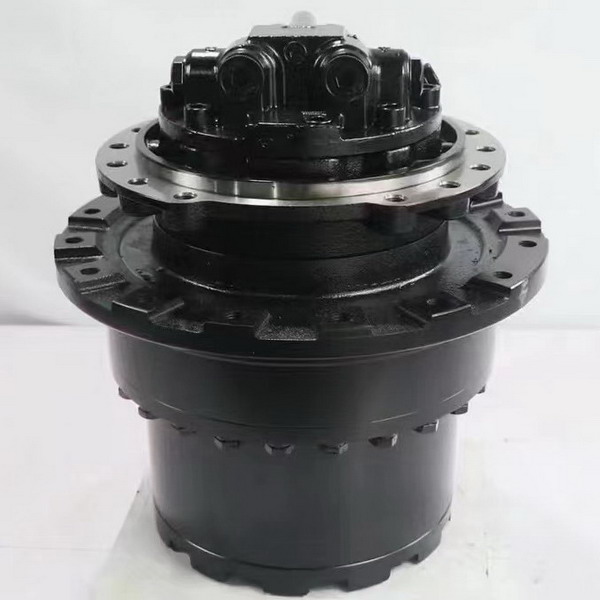

The R210 Final Drive consists of a Swash-plate Piston Motor integrated with a high-strength planetary track reducer. It is widely used for Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.
| Motor Displacement | 95/150 cc/r |
|---|---|
| Working pressure | 31.5 Mpa |
| Speed control pressure | 2~7 Mpa |
| Ratio options | 50 |
| Max. torque of Gearbox | 42000 N.m |
| Max. speed of Gearbox | 46 rpm |
| Machine application | 25~30 Ton |
| Frame connection diameter | 300mm |
|---|---|
| Frame flange bolt | 30-M16 |
| Frame flange P.C.D. | 340mm |
| Sprocket connection diameter | 402mm |
| Sprocket flange bolt | 30-M16 |
| Sprocket flange P.C.D. | 440mm |
| Flange distance | 98mm |
| Approximate weight | 380kg (840lbs) |
All Final Drives provide OEM quality and are warranted for ONE FULL YEAR from the date of delivery against defects in materials and workmanship.
Our Hydraulic Final Drive Motors feature similar dimensions to most famous brands on the market, such as Nachi Travel Motors, KYB Travel Motors, Eaton Track Drives, and other excavator Travel Motors. This makes them ideal for both OEM and after-sales markets to replace existing hydraulic components seamlessly.
