OEM Hitachi Final Drive ZX200-3 Travel Motor for Track Drive Supplier, Suppliers

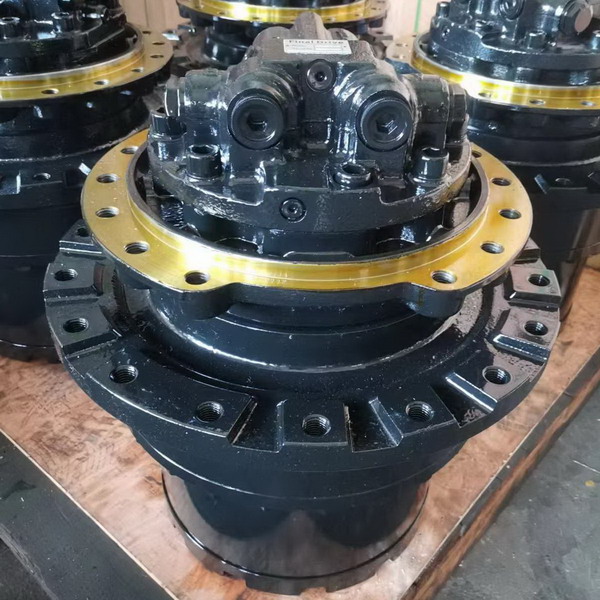

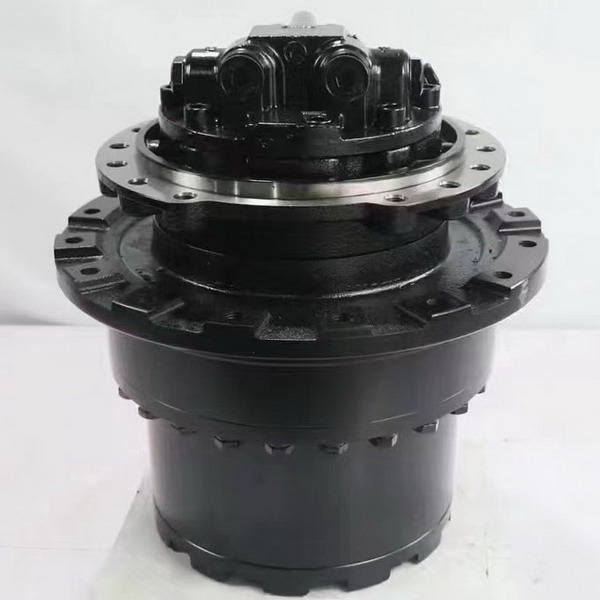

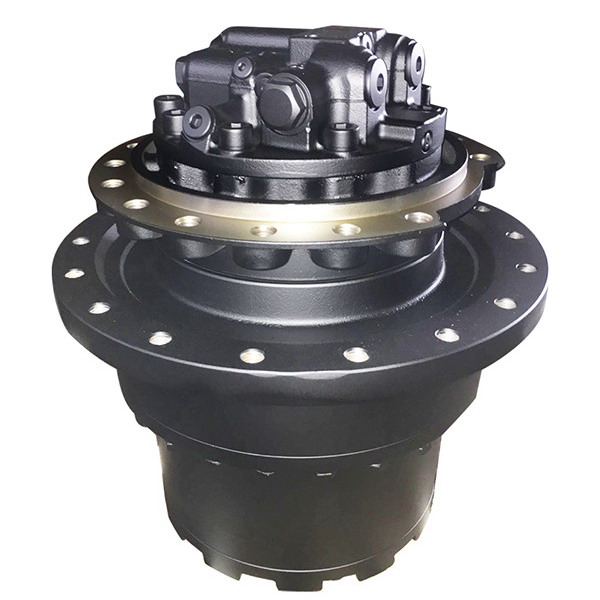

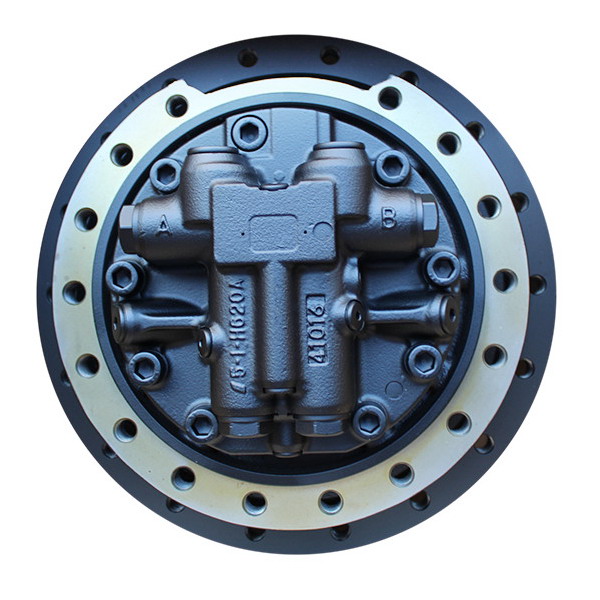

Model No.: ZX200-3 HMGF40FA Final Drive for Hitachi Excavator. Machine models: ZAX200-3, ZX200-3, ZX200-5G, ZX210-3, ZAX210-5G Part NO. 9233692, 9261222. OEM quality with One Year warranty.

Send Inquiry

Product Description

🎬 Video Display

Model	Max Output Torque (Nm)	Max Working Pressure (Mpa)	Max Output Speed (r/min)	Applicable Tonnage(T)
R210	42000	34.5	46	25-30T

⚙️ Key Features

The R210 Final Drive consists of a Swash-plate Piston Motor integrated with a high-strength planetary track reducer. It is widely used for Excavators, Drilling Rigs, Mining Equipment, and other Crawler Equipment.

Swash-plate Axial Piston Motor with high efficiency.

Double speed Motor with large ratio for wide usage.

Built-in parking brake for safety.

Extremely compact volume and light weight.

Reliable quality and high durability.

Travels smoothly with very low noise.

Standard Free-wheel device.

Optional automatic speed changing function.

📊 Technical Specifications

Motor Displacement	95/150 cc/r
Working pressure	31.5 Mpa
Speed control pressure	2~7 Mpa
Ratio options	50
Max. torque of Gearbox	42000 N.m
Max. speed of Gearbox	46 rpm
Machine application	25~30 Ton

🔗 Connection Details

Frame connection diameter	300mm
Frame flange bolt	30-M16
Frame flange P.C.D.	340mm
Sprocket connection diameter	402mm
Sprocket flange bolt	30-M16
Sprocket flange P.C.D.	440mm
Flange distance	98mm
Approximate weight	380kg (840lbs)

📝 Summary & Warranty

All Final Drives are of OEM quality and are warranted for ONE FULL YEAR from the date of delivery against defects in materials and workmanship.

The series Hydraulic Final Drive Motor features dimensions similar to most famous brands in the market, such as Nachi, KYB, Eaton, and other excavator Travel Motors. It is widely used in both OEM and aftersales markets to replace major brands.

⚠️ IMPORTANT REMINDER:

Unclean hydraulic oil will definitely cause damage to your hydraulic components. This damage is NOT included in the warranty range. We strongly suggest using new clean oil and ensuring the system oil is clean when installing our parts.

❓ FAQ

1. What tonnage of excavators is the R210 Final Drive suitable for?

The R210 Final Drive is specifically designed for crawler equipment in the 25 to 30-ton range.

2. Is the R210 Final Drive compatible with other major brands?

Yes, it features similar dimensions to brands like Nachi, KYB, and Eaton, making it an ideal replacement in both OEM and aftersales markets.

3. What kind of warranty is provided?

We provide a one-full-year warranty from the delivery date covering defects in materials and workmanship.

4. Does the motor include a braking system?

Yes, the motor includes a built-in parking brake for enhanced safety during operation.

5. What is the maximum output torque of this travel motor?

The R210 model provides a maximum output torque of 42,000 Nm.

6. Why is hydraulic oil cleanliness so important for the warranty?

Contaminated oil is the primary cause of hydraulic component failure. Since this is a maintenance issue, damage caused by unclean oil is not covered under the warranty policy.
