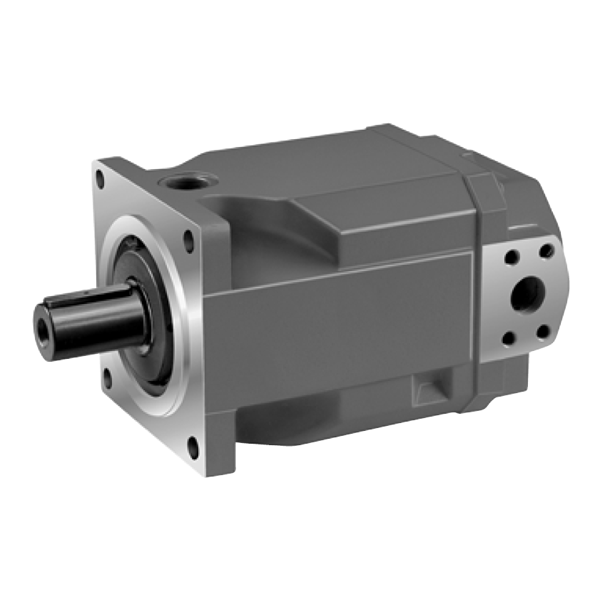

A4FO is a swashplate design pump with fixed displacement. It is a widely used high pressure pump up to 400 bar. It can be used on open circuit both for mobile and for stationary applications.
Features
Excellent suction characteristics
Through drive for combining additional pumps
Optimized dimensions for special installation situations

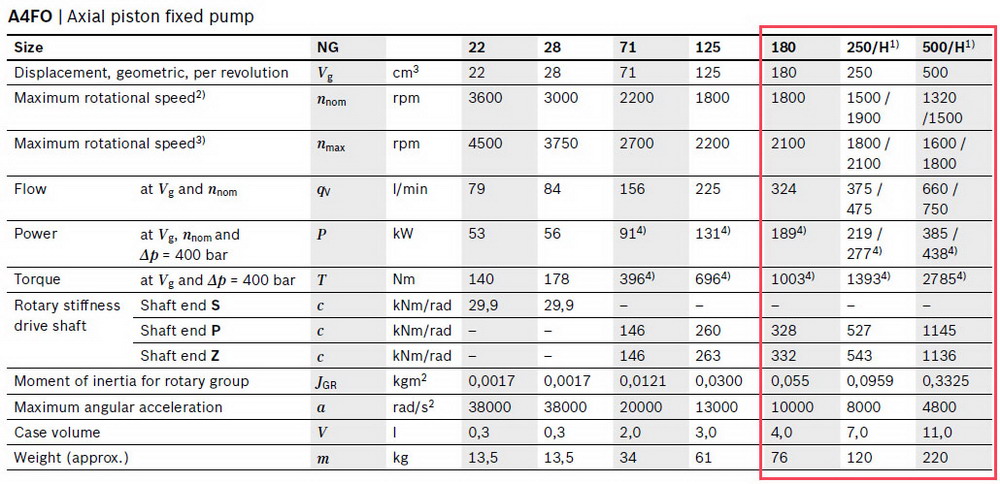

A4FO Parameters

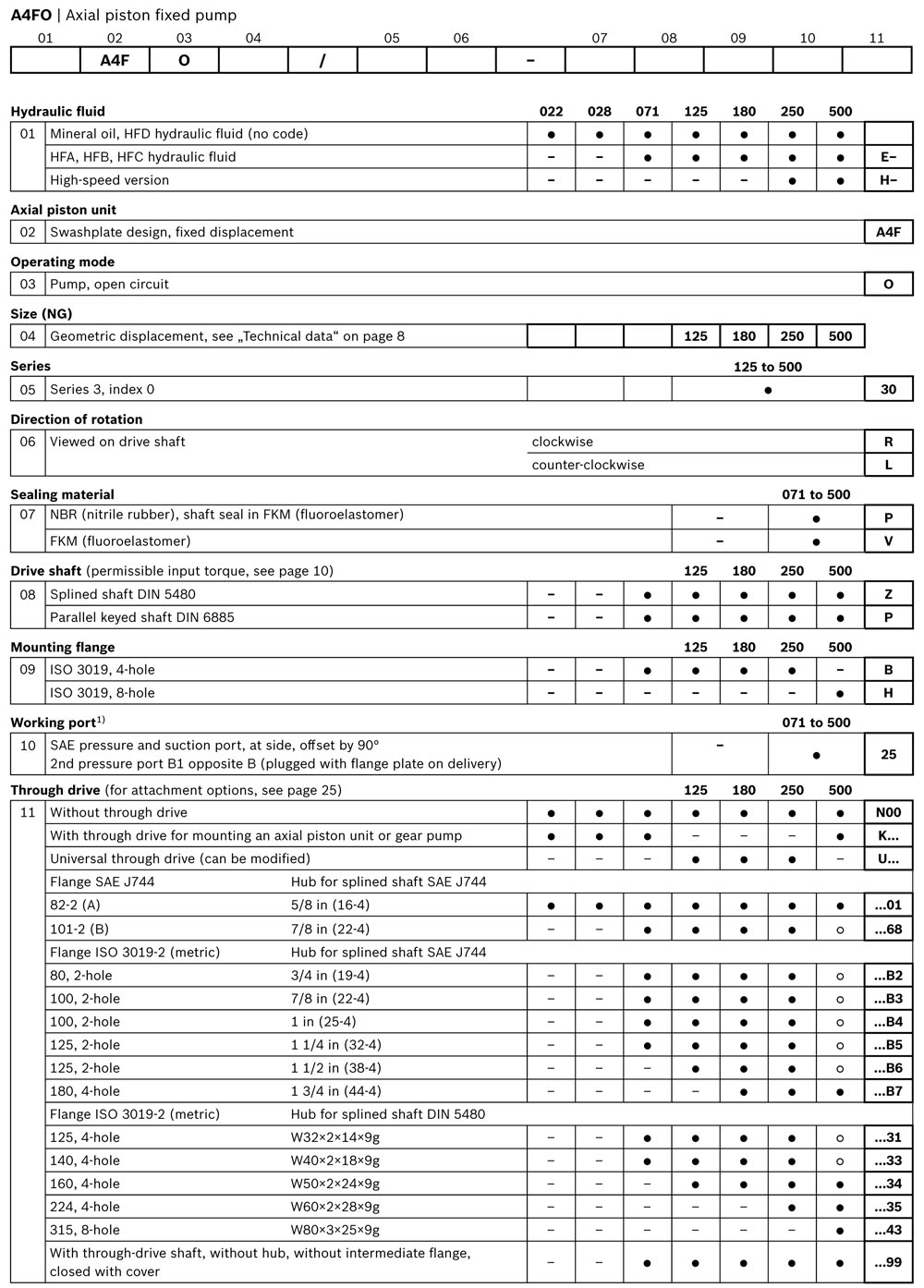

A4FO pump Ordering Code

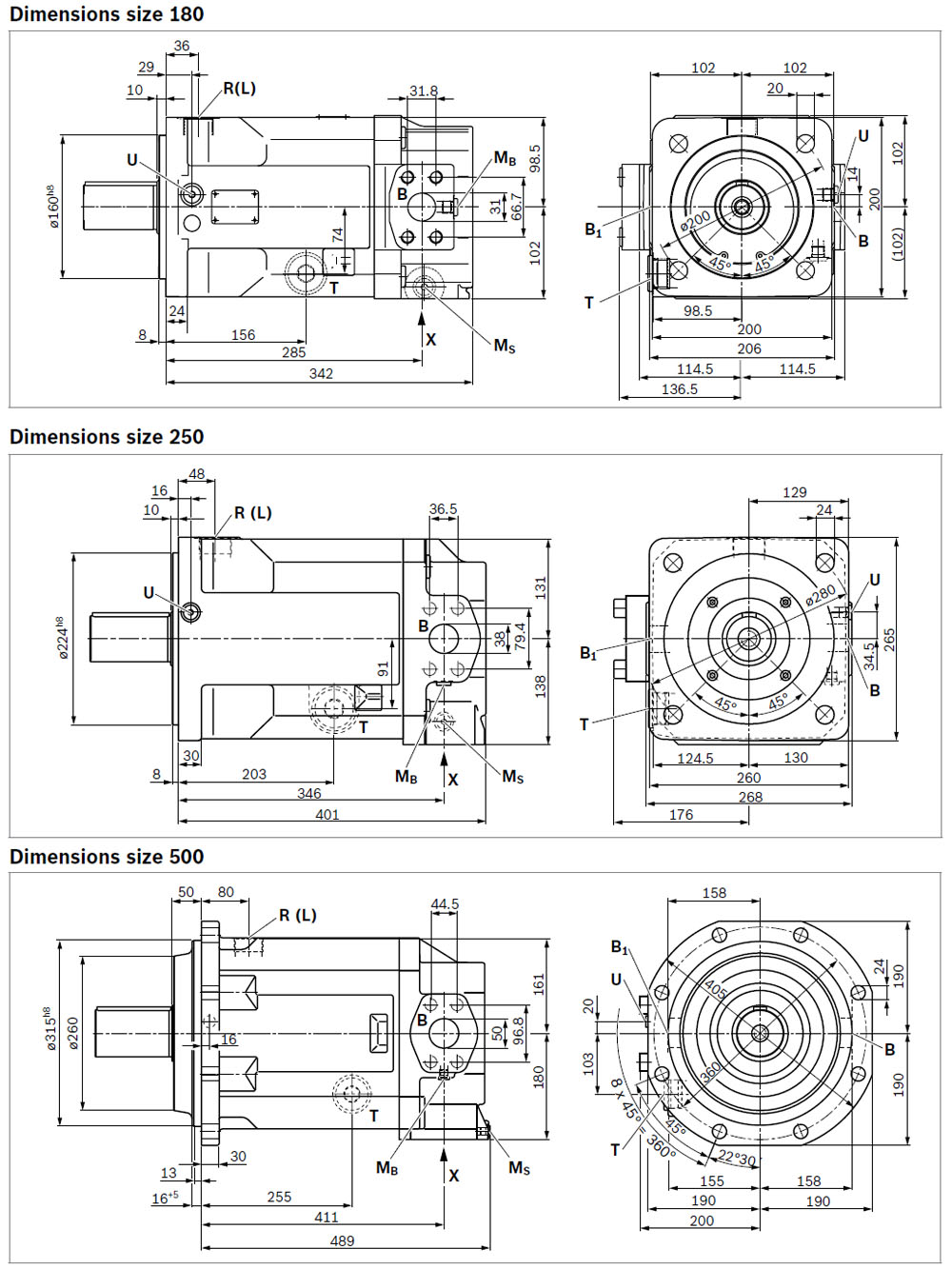

A4FO dimensions
Frequently Asked Questions
What is the design type of the A4FO pump?
The A4FO is a swashplate design pump with fixed displacement, engineered for high-pressure performance.
What is the maximum pressure capability of the A4FO?
The A4FO pump is a high-pressure unit capable of operating at pressures up to 400 bar.
In what types of circuits can this pump be used?
It is designed for use in open circuits, suitable for both mobile and stationary hydraulic applications.
Can I combine the A4FO with other pumps?
Yes, the A4FO features a through drive that allows for the combination of additional pumps in a hydraulic system.
What are the main advantages of using an A4FO pump?
Key advantages include its economical design, low noise level, high power density, and excellent suction characteristics.
Is the A4FO suitable for compact installations?
Yes, it features optimized dimensions specifically designed for special and restricted installation situations.
