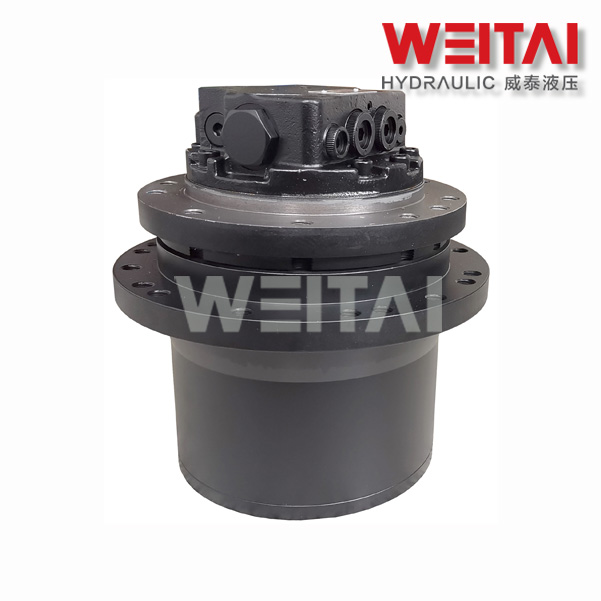

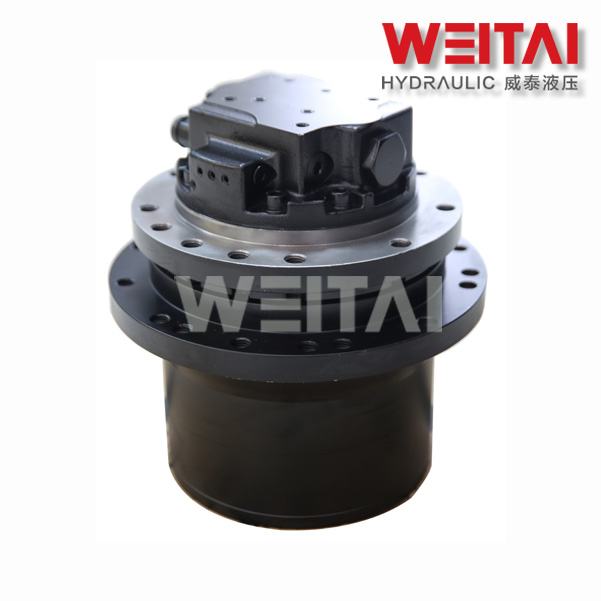

China Travel Motor MAG-33V-650 Suppliers, Factory

Model No.: MAG-33V-650
5-6 ton Mini Excavator Final Drive.
OEM quality with One Year warranty.
Quickly delivery within 3 days (standard models).
Interchangeable with TM06, JMV044, 704-C2K Travel Motors.

Send Inquiry

Product Description

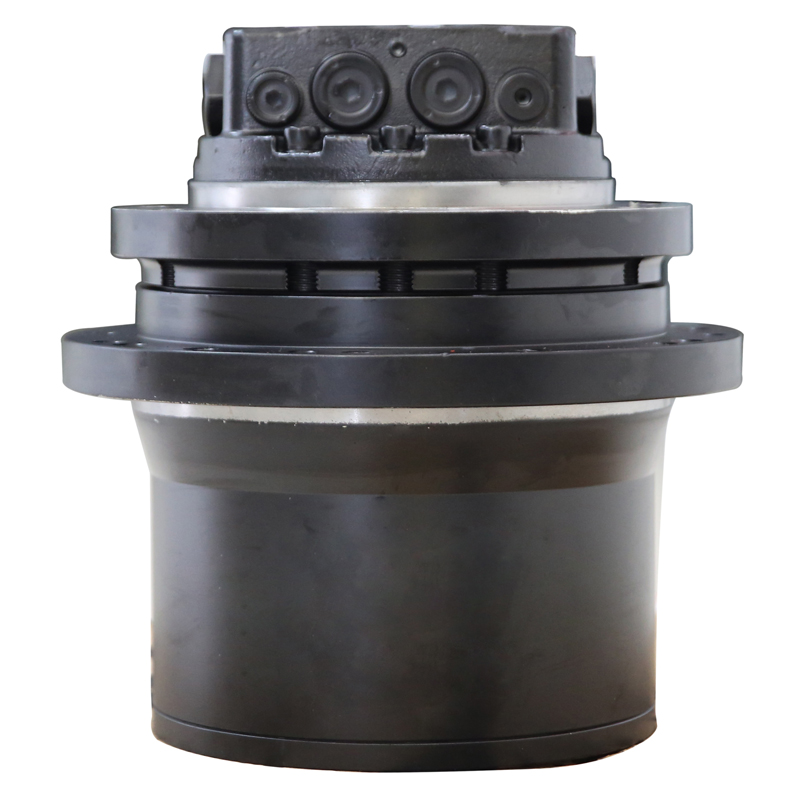

▶ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
MAG-33V-650	21 MPa	6370 N.m	55 rpm	2-speed	4 ports	5-6 Ton Excavator

◆ Brief Introduction

MAG-33V-650 Travel Motor is a medium-high torque motor for medium-slow speed crawler vehicle traveling. Combination of a case-rotation type simple planetary speed reducer and a swash plate motor, two-speed switching, and installation of parking brake are possible.

◆ Summary

MAG series Hydraulic Final Drive Motors have the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.

Available Piston Motor models include MAG-12V-120, MAG-18V-230, MAG-18V-350, MAG-26V-400, MAG-33V-650, MAG-50VP-900, MAG-85VP-1800, MAG-85VP-2400, MAG-170VP-3800 and MAG-180VP-6000.

✔ Key Features

◈ High efficiency swash-plate Piston Motor with planetary reducer.

◈ Double speed Motor with large ration for widely usage.

◈ Extremely compact volume and light weight.

◈ Reliable quality and high durability.

◈ Travels smoothly with very low noisy.

◈ Freewheel design is optional.

◈ Automatic speed changing function is optional.

◆ Specifications

Motor Displacement	19/34 cc/r
Working pressure	21 Mpa
2-Speed control pressure	2~7 Mpa
Ratio options	47.5
Max. torque of Gearbox	6300 N.m
Max. speed of Gearbox	54 rpm
Machine application	5~6 Ton

* Displacement and gear ratio can be made as required.

◆ Connection Dimensions

Frame flange orientation diameter	180mm
Frame flange bolt pattern	9-M12 Equally
Frame flange holes P.C.D.	220mm
Sprocket flange orientation diameter	230mm
Sprocket flange bolt pattern	9-M12 Equally
Sprocket flange holes P.C.D.	262mm
Flange distance	75mm
Approximate weight	70kg

* Flange hole patterns can be made as required.

? Frequently Asked Questions

Q1: Which excavator models is the MAG-33V-650 travel motor suitable for? A: This travel motor is specifically designed for 5 to 6-ton crawler excavators and similar machinery.

Q2: Can this motor replace other major brands like Nachi or KYB? A: Yes, the MAG series features dimensions similar to Nachi, KYB, Eaton, and Nabtesco, making them ideal for both OEM and aftermarket replacements.

Q3: Does the MAG-33V-650 support multiple speeds? A: Yes, it is a 2-speed motor that allows for switching between speeds to suit different traveling requirements.

Q4: What are the customization options for this hydraulic motor? A: We can customize the motor displacement, gear ratios, and flange hole patterns according to your specific requirements.

Q5: What are the key advantages of using a swash-plate piston motor? A: Swash-plate piston motors combined with planetary reducers offer high efficiency, compact volume, light weight, and high durability for heavy-duty applications.

Q6: Is a parking brake included in this assembly? A: Yes, the installation of a parking brake is possible with this integrated planetary speed reducer and motor combination.
