China Track Drive 700C2K Manufacturers, Supplier

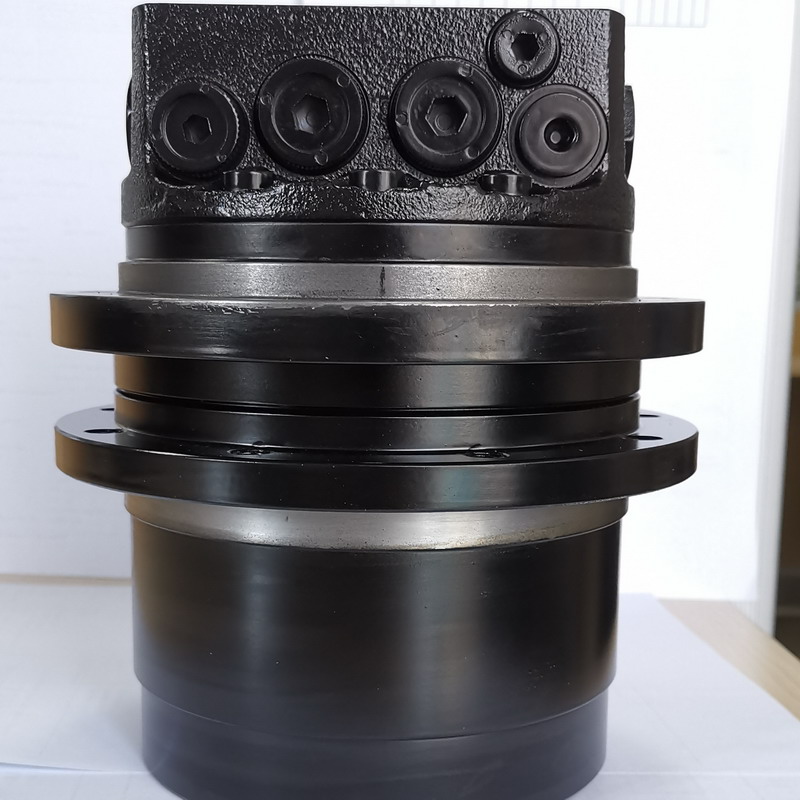

Model No.: 700 C2 K 1-2 ton Mini Excavator Final Drive. OEM quality with One Year warranty. Quickly delivery within 3 days (standard models). Interchangeable with TM-02, PHV-1B, TRB31, PGR132 Travel Motors.

Send Inquiry

Product Description

📺 Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
700 C2 K	21 MPa	1200 N.m	75 rpm	2-speed	4 ports	1-1.8 Ton Excavator

📝 Brief Introduction

700CK series Track Drive motors are integrated Travel Drive motors for crawler excavators and other track drive machines. Extreme compactness, lightweight, efficiency and smooth operation are the key features of the 700CK series track drives. It is powered by integrated axial piston motor and worked with high strength big torque reducing gearboxes.

🏗️ Widely Applications

WTM Travel Motors are suitable for most of the Excavators in the market, including:

Airman, Atlas Copco, Bobcat, Case, Caterpillar, Daewoo/Doosan, Gehl, Hitachi, Hyundai, IHI, JCB, John Deere, Kobelco, Komatsu, Kubota, Liebherr, LiuGong, Lonking, Lovol, Mitsubishi, Nachi, New Holland, Nissan, Pel Job, Rexroth, Samsung, Sany, Sandvik, Schaeff, SDLG, Sumitomo, Sunward, Takeuchi, Terex, Wacker Neuson, Wirtgen, Volvo, XCMG, XGMA, Yanmar, Yuchai, Zoomlion and other main brand Excavators.

📋 Summary

700 CK series Track Drive is with the similar dimensions with most of the famous brands in market such as Nachi Travel Motor, KYB Travel Motor, Eaton Track Drive, and other Final Drives. So it widely used in the OEM and aftersales market to replace Nachi, Kayaba, Eaton, Nabtesco, Doosan, Bonfiglioli, Brevini, Comer, Rexroth, Kawasaki, Jeil, Teijin Seiki, Tong Myung and other Hydraulic Final Drive Motors.

Our models include 700C2K, 700-2C2K, 701C2K, 702C2K, 704C2k, 705C2k to 710C2K. We also offer 700C1H, 701C1, 703C2H, 705C2H, 706C3H, 707 C2B, 709C3B, 710C2B, 711C3B, 713C3B, 715C3B, 717C3H, and the full series of 700C Travel Drives.

🌟 Key Features

Swash-plate Piston Motor with high efficiency.

Double speed Motor with large ratio.

Rugged and compact design.

High torque and load capacity.

Rotating output flange for sprocket.

Optional automatic speed switching.

⚙️ Specifications

Motor Displacement	12/7.8 cc/r
Working pressure	21 Mpa
2-Speed control pressure	2~7 Mpa
Ratio options	37
Max. torque of Gearbox	1200 N.m
Max. speed of Gearbox	75 rpm
Machine application	0.8~1.8 Ton

* Displacement and gear ratio can be customized as required.

📏 Connection Dimensions

Frame flange orientation diameter	140mm
Frame flange bolt pattern	8-M10
Frame flange holes P.C.D.	155mm
Sprocket flange orientation diameter	140mm
Sprocket flange bolt pattern	8-M10 Equally
Sprocket flange holes P.C.D.	155mm
Flange distance	45mm
Approximate weight	20kg (44lbs)

* Flange hole patterns can be manufactured as required.

❓ Frequently Asked Questions

Q1: Which excavator models are compatible with the 700CK series? A1: The 700CK series is designed for 0.8 to 1.8-ton excavators and is compatible with major brands like Bobcat, Caterpillar, Kubota, Komatsu, and Yanmar.

Q2: Can the 700CK travel motor replace other brands directly? A2: Yes, it features similar dimensions to Nachi, KYB, Eaton, and Nabtesco motors, making it an ideal replacement for both OEM and aftersales markets.

Q3: Are customization options available for displacement and gear ratios? A3: Yes, we can adjust the motor displacement and gear ratios based on your specific machine requirements.

Q4: What are the primary advantages of the integrated axial piston motor? A4: The integrated design provides extreme compactness, lightweight construction, and high efficiency, ensuring smooth operation under heavy loads.

Q5: Can I request a specific flange hole pattern? A5: Absolutely. Flange hole patterns and P.C.D. dimensions can be customized to match your sprocket and frame orientation.

Q6: Does the motor support automatic speed switching? A6: Yes, automatic speed switching is an optional feature for the 700CK series to enhance operational flexibility.
