China 307-3045 Final Drive Supplier, Factory

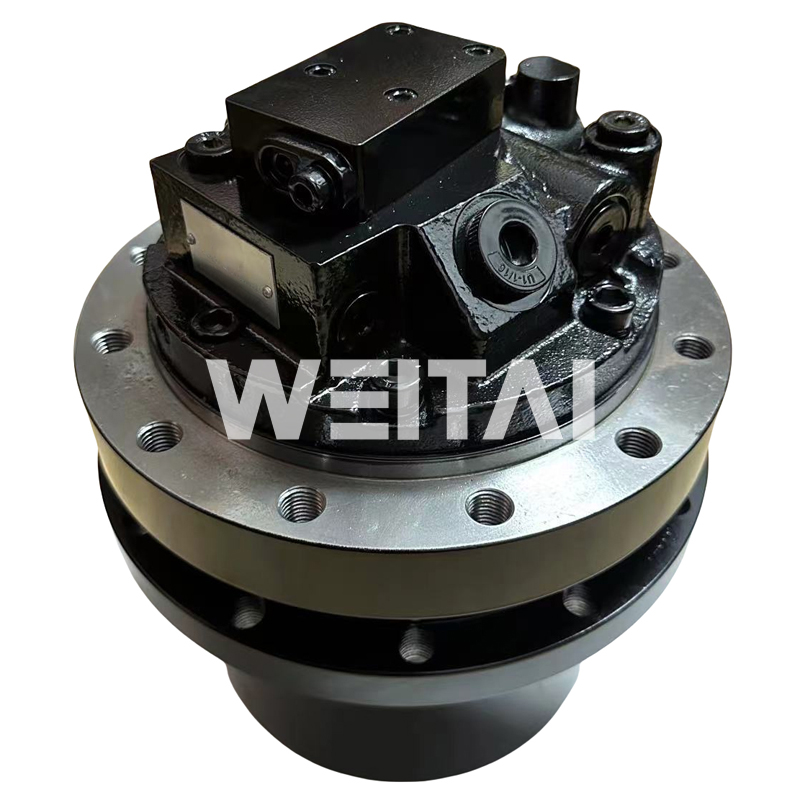

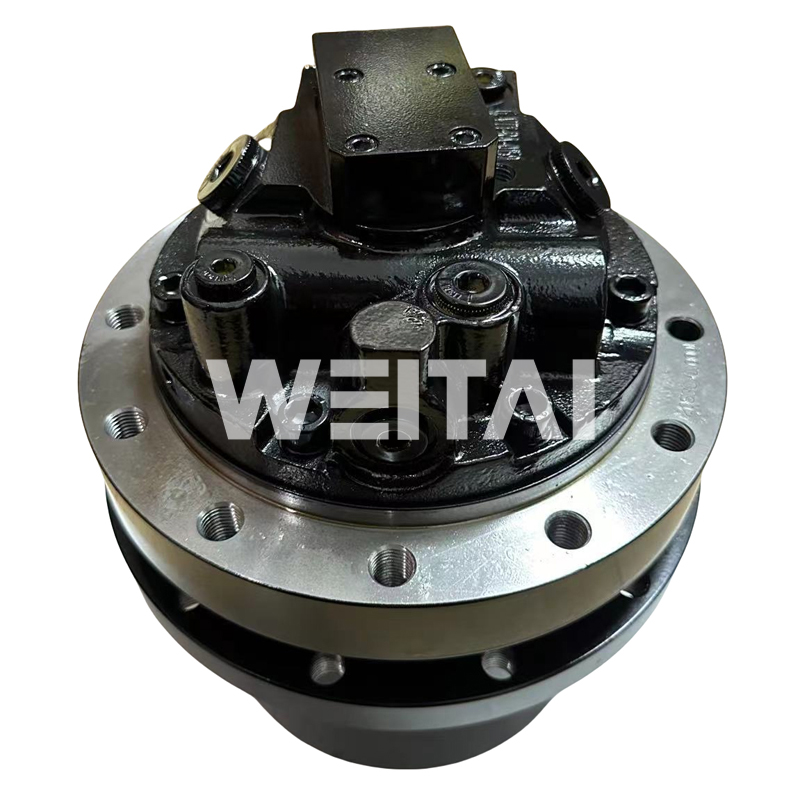

Model No.: FD-279C 2-speed final drive motor to replace 307-3045. Used for 289C 279C2 279C 289C2 299C Skid Steer Loader. 2-speed final drive with gearbox. Speed sensor hole optional.

Send Inquiry

Product Description

◈ Video Display

Model	Max Working Pressure	Max. Output Torque	Max. Output Speed	Speed	Oil Port	Application
FD-279C	27.5 MPa	5500 N.m	112 rpm	2-speed	5 ports	5-7 Ton

◈ Key Features

Swash-plate Axial Piston Motor with high efficiency.
Double speed Motor with large ration for widely usage.
Build-in parking brake for safety.
Extremely compact volume and light weight.
Reliable quality and high durability.
Separated parking brake hole.
Optional speed sensor.

◈ Brief Introduction

FD-279C Final Drive is build to replace OEM 307-3045. 2-speed Swash-plate Piston Motor integrated with a planetary reducer gearbox. It is used for for 289C 279C2 279C 289C2 299C Skid Steer Loader.

◈ Connection Specifications

Frame connection diameter	210mm
Frame flange bolt	12-M16
Frame flange P.C.D.	240mm
Sprocket connection diameter	220mm
Sprocket flange bolt	12-M16
Sprocket flange P.C.D.	255mm
Flange distance	85mm
Approximate weight	70kg

◈ Frequently Asked Questions (FAQ)

Q1: Which loader models is the FD-279C Final Drive compatible with? A: It is designed specifically for 289C, 279C2, 279C, 289C2, and 299C Skid Steer Loaders.

Q2: Can this unit be used as a direct replacement for OEM parts? A: Yes, the FD-279C is engineered as a direct replacement for the OEM 307-3045 final drive.

Q3: What type of motor technology is utilized in this drive? A: It utilizes a high-efficiency 2-speed Swash-plate Axial Piston Motor combined with a planetary reducer gearbox.

Q4: What is the maximum output torque and speed of this model? A: The FD-279C provides a maximum output torque of 5500 N.m and a maximum output speed of 112 rpm.

Q5: Does this final drive include a braking system? A: Yes, it features a built-in parking brake for enhanced safety and includes a separated parking brake hole.

Q6: What is the weight and physical size of the FD-279C? A: The approximate weight is 70kg, and it features a compact volume designed for space-constrained installations on 5-7 ton equipment.
